Since ancient times, the Chinese nation has had a unique feeling for jade. A gentleman is like jade, and wearing jade products is also good for physical and mental health. The material I share with you today is related to "jade" - jade glass. You may ask: What is jade glass? Is it glass made of jade?


 Ⅰ.What is jade glass


1)Definition

Jade glass, also known as crystal jade, is a special glass product. The float glass original piece is forged at high temperature through a special process to form a translucent glass artificial stone with special texture and natural jade texture. The appearance surface effect is divided into polished surface and matte surface. The polished surface is as smooth as the glass surface; the matte surface has a diffuse reflection effect and has an anti-slip effect. Due to its own translucent characteristics, the three-dimensional effect is very good, so it is often used in curtain walls, furniture and indoor engineering installation.


2) Advantages

  • Translucency: Jade glass is a transparent material throughout the body, and it can create ever-changing effects with different lighting effects;

  • Wear resistance: The hardness is as high as Mohs 6. Due to its high hardness and wear resistance, it is very suitable for outdoor buildings, indoor spaces, kitchen countertops and other places, and the maintenance cost is extremely low;

  • Corrosion resistance: Jade glass has extremely high corrosion resistance, acid and alkali resistance, weathering resistance, and stain resistance. It can also maintain a warm color and cleanliness for a long time when used in the kitchen or facade;

  • High temperature resistance: Jade glass is similar to high temperature resistant special glass. The product performance remains stable within the range of rapid cooling and heating temperatures;

  • Zero water absorption: The water absorption rate is only 0.016%, almost zero water absorption, oil, stains or other liquids will not penetrate into it at all, it is easy to clean, will not cause mold, yellowing, discoloration and other problems, and will last as bright as new;

  • Zero radiation: Glass is an amorphous inorganic non-metallic material, the main component of which is silicon dioxide formed by high temperature, and has no radiation at all;

  • Color consistency: Jade glass can ensure that the products fired in the same batch are uniform in texture and have no color difference during the production process.


3)Jade glass VS traditional stone

Due to its excellent performance, jade glass is often used instead of traditional stone for indoor and outdoor floors and walls. So what are the differences between these two materials?


  • Aesthetics

Traditional stone: opaque, if you want to create a hazy and quiet light effect, you need to do frosting;

Jade glass: translucent throughout, with different lighting effects can create a variety of effects;


  • Service life

Traditional stone: Mohs hardness is usually 2.5-5, the texture is soft, the surface is prone to scratches, and the later maintenance cost is high;

Jade glass: Mohs hardness reaches 6, high hardness, wear resistance, low later maintenance cost;


  • Stability

Traditional Stone: Poor stability, easy to be polluted, aging, discoloration, alkali, yellow spots and other problems, not resistant to high temperature;

Jade glass: It has extremely high corrosion resistance, acid and alkali resistance, not easy to weather, strong anti-fouling ability, and high temperature resistance;


  • Water absorption rate


Traditional stone: Most of them are multi-void structures, with holes on the surface, and they are prone to yellowing and even mold after absorbing water;

Jade glass: It hardly absorbs water, stains will not penetrate into the interior, easy to clean, and will not cause yellowing, discoloration, and mold.

8
9
10
11
12

02. Effect display

The above are the performance characteristics of jade glass. Its light-transmitting characteristics are destined to be good-looking! Next, let's appreciate the actual application effect!

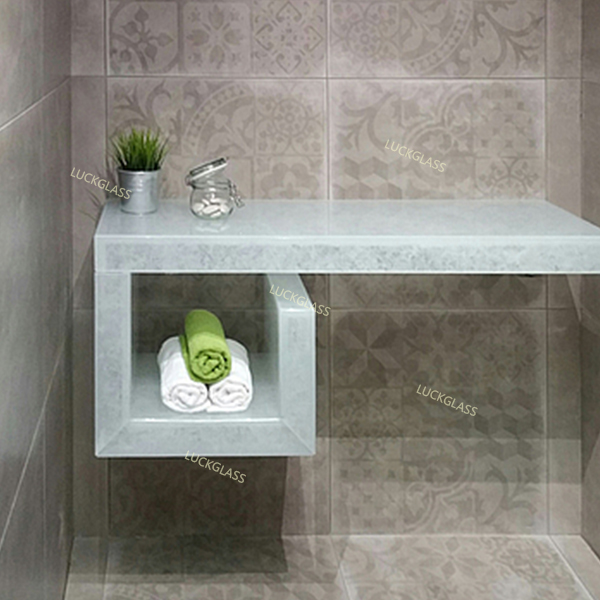

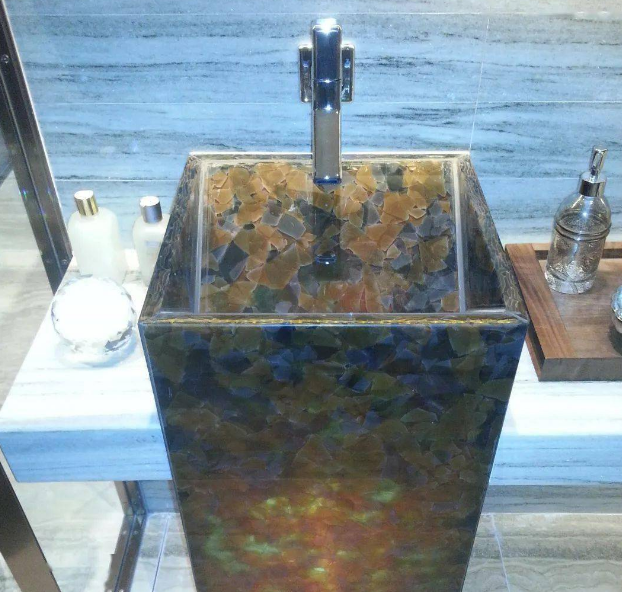

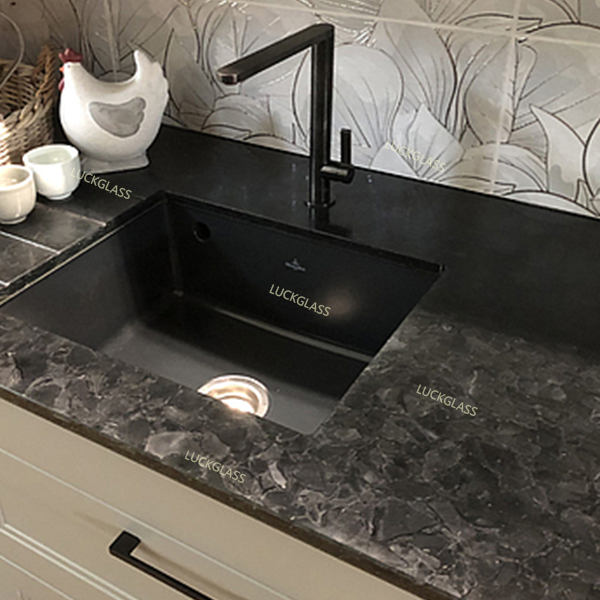

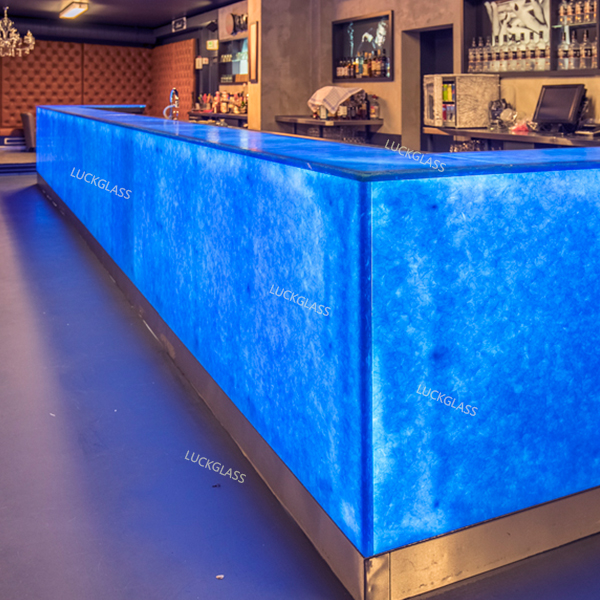

1) Furniture countertops

2
7
3

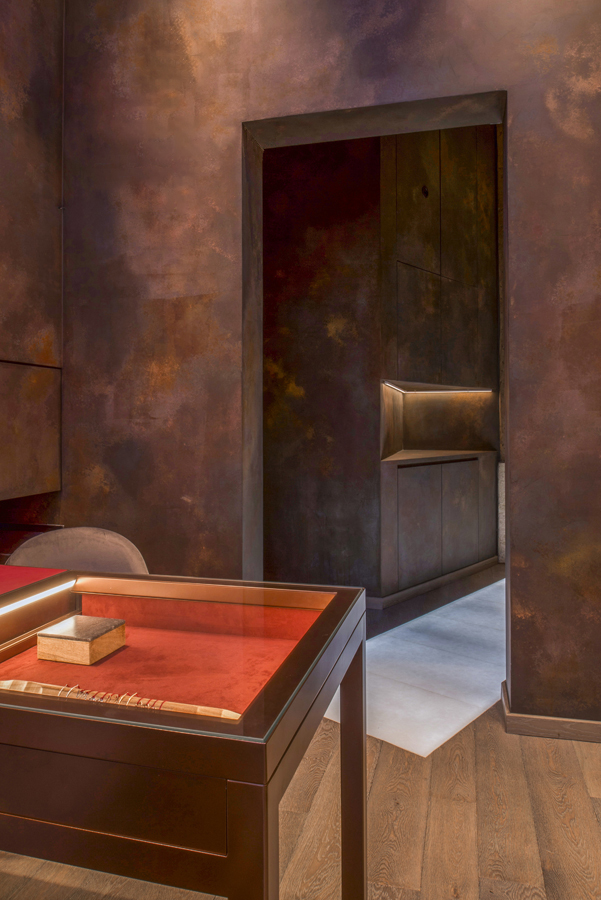

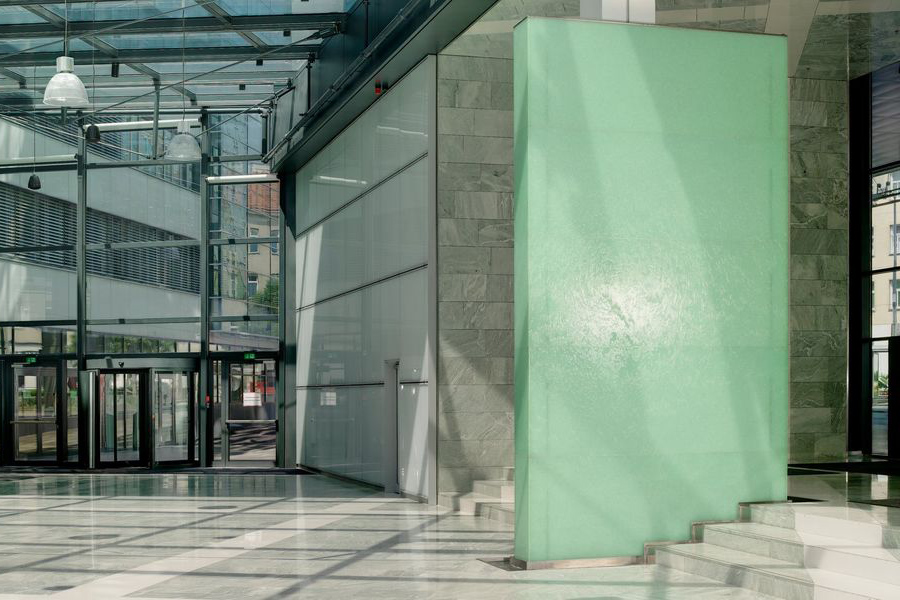

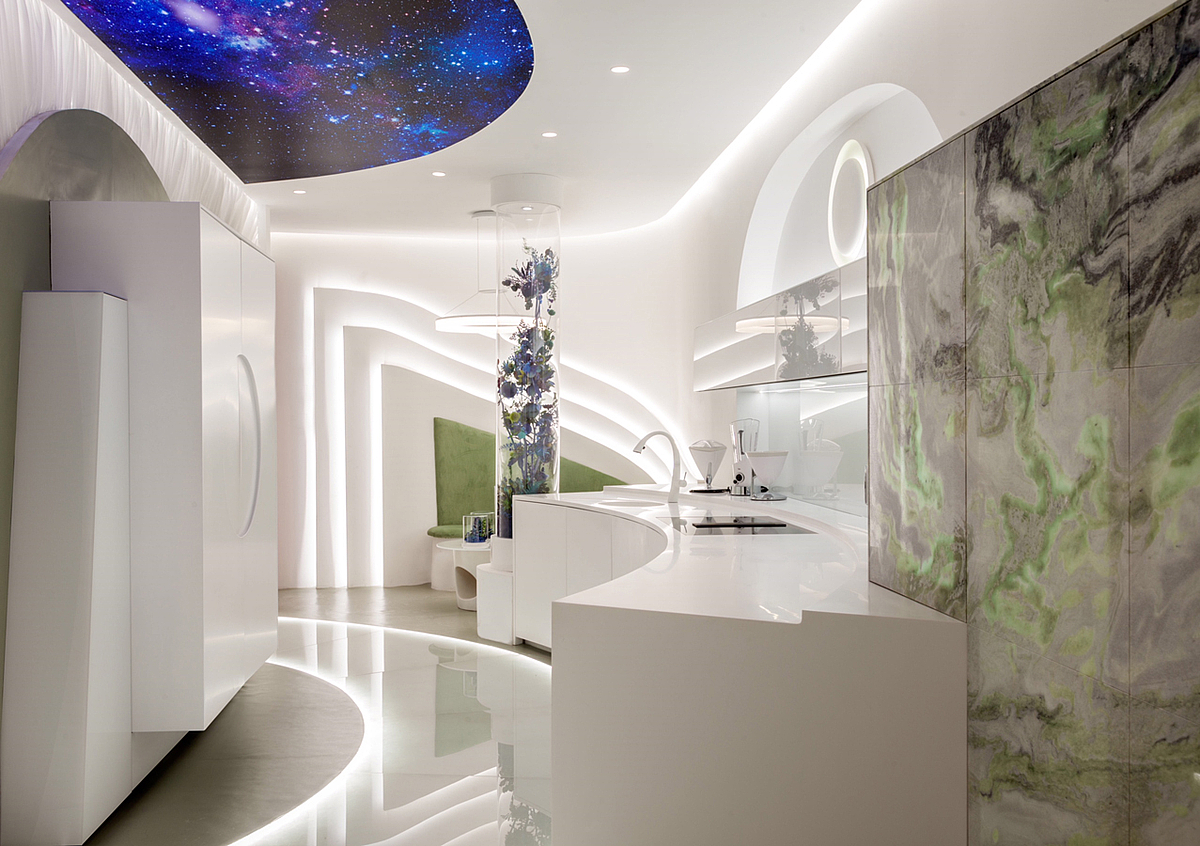

2) Building curtain walls


1Wasserwand_Wien  PolarWhite_Boden_GORALSKA3  csm_IceNugget_pol_Boden_CasaDecor5_9718b86472  Theke_clear1

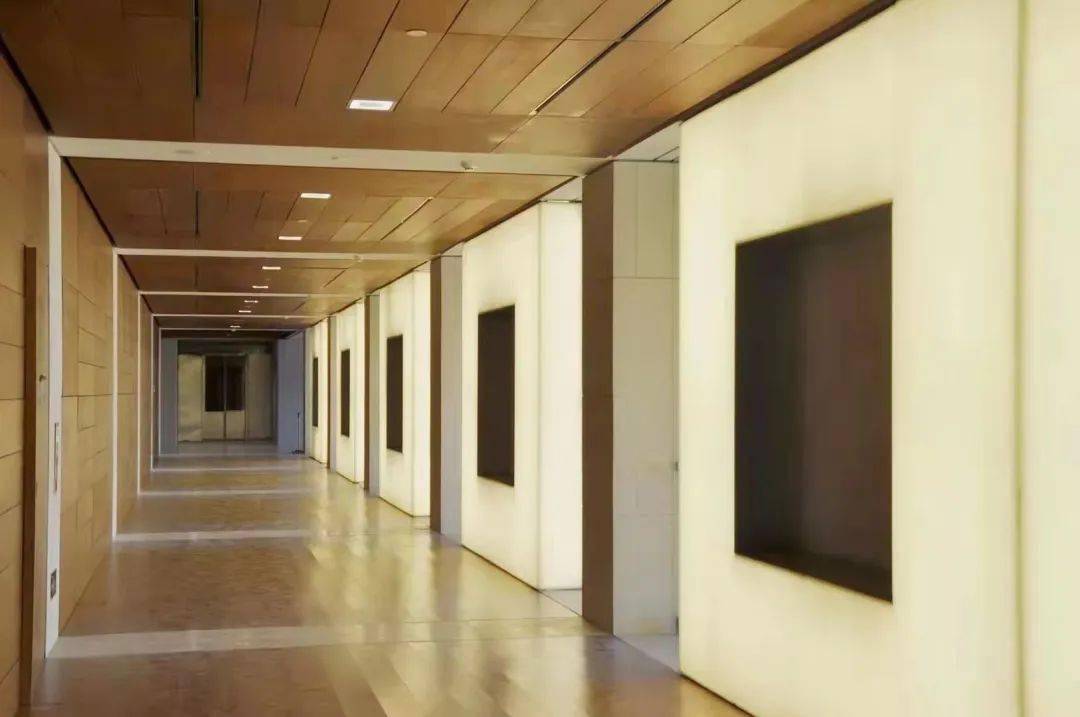

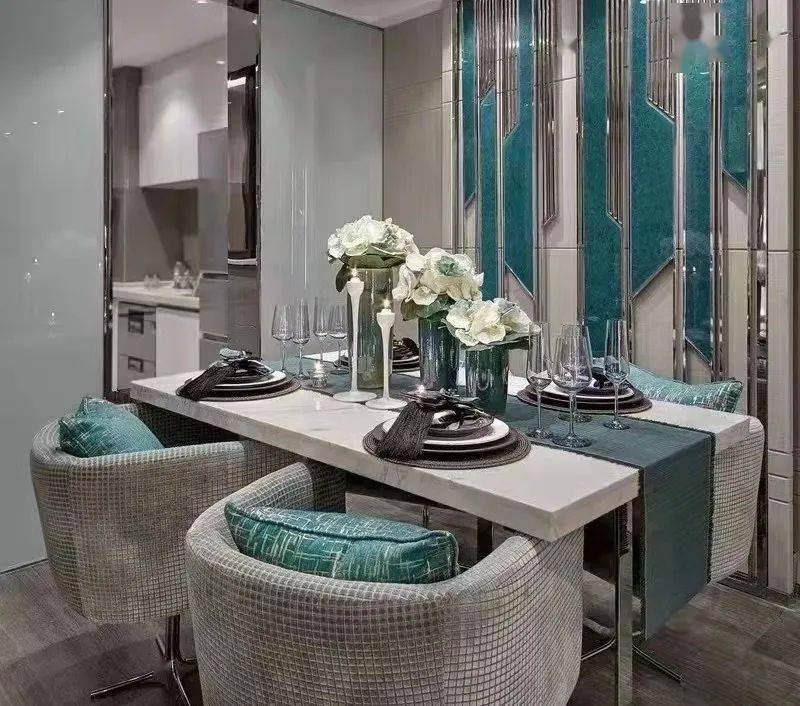

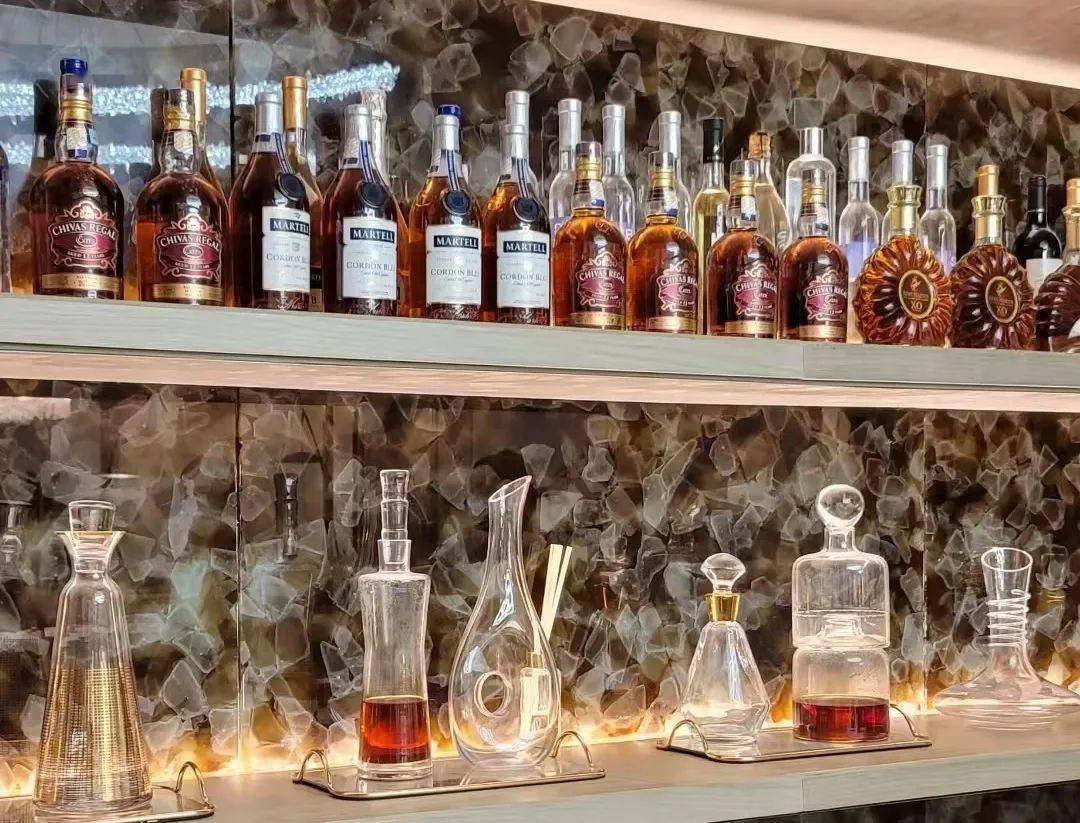

3) Interior decoration

1  2  4

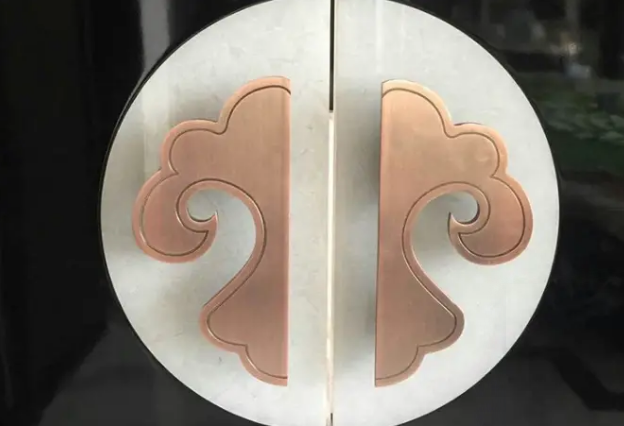

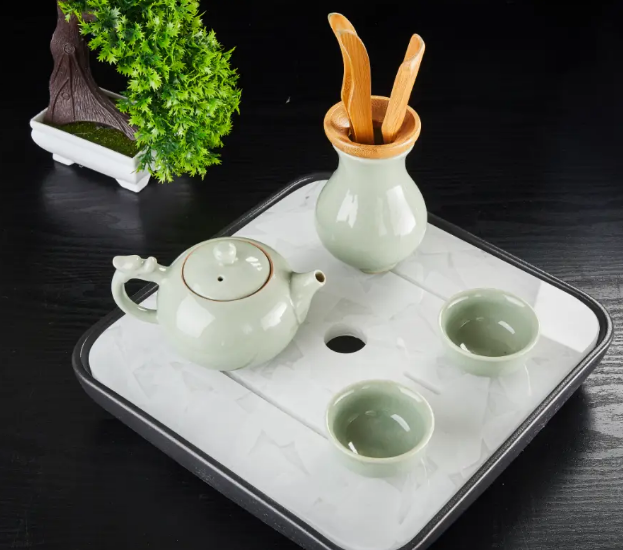

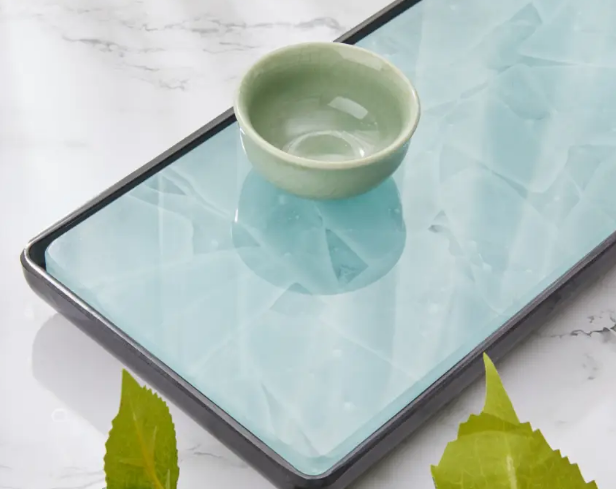

4) Soft furnishings

5  6  7  8

03. Construction technology

How is the actual application effect of jade glass? It can not only be used for walls and floors, but also as decorations! Because jade glass is a kind of glass, its construction method is similar to that of most tempered glass, so I will not go into details here. Regarding the construction technology part, we will focus on sharing the processing methods of jade glass today, as well as the points that need special attention in different construction methods.


9

1) Processing methods of jade glass


▲Cutting


a. Straight-line cutting: The tools used for straight-line cutting are mainly infrared bridge cutting machines and hand-cranked profiling machines. The blades used for cutting are mainly fishhook-type cutting discs, fishhook-type cutting teeth, straight groove-type cutting discs, and straight groove-type cutting teeth;

b. Special-shaped cutting: The tools used for special-shaped cutting are mainly ultra-high pressure water jets (water jets);


10

▲Ultra-high pressure water jet (water jet)


c. Manual cutting: The tool used for manual cutting is our common portable cutting machine, and the blade is a φ120 diamond saw blade.

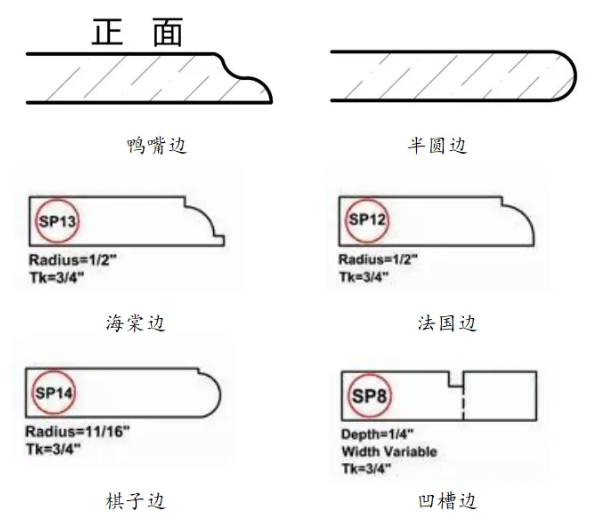

d. Edge grinding: Edge grinding is not only to beautify the edge of the crystal jade plate, but also to eliminate the unstable stress caused by cutting of the crystal jade plate. There are mainly the following

e.types of edge grinding:

•Straight edge;

•Craft edge: Craft edge mainly refers to duckbill edge, semicircular edge, crabapple edge, French edge, chess piece edge, groove edge, etc.;


11

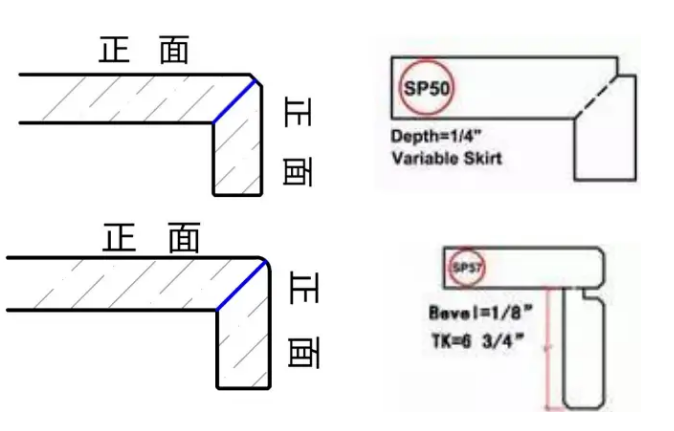

2) Bonding combination

Under certain circumstances, jade glass needs to be bonded and combined into a shape that meets the requirements. Generally speaking, there are two bonding methods, one is vertical bonding and the other is overlapping bonding.




12

▲Schematic diagram of overlapping bonding


3) Drilling and concave


Design suggestions for drilling and concave are as follows:


a. For small holes (e.g. faucet holes), it is generally recommended that the distance between the hole edge and the nearest edge must be greater than or equal to twice the diameter distance;


b. For the hole position of large holes (e.g. basin holes), it is generally recommended that the distance between the hole edge and the nearest edge must be greater than or equal to 100mm;


c. The right angles of square holes need to be processed into fillets, and the fillet radius cannot be less than 20mm. For fillets that need to be polished, the radius cannot be less than 120mm. Faucet holes (6mm≤diameter≤62mm round holes), basin holes (diameter≥62mm or more).


5) Composite lamination and hollow

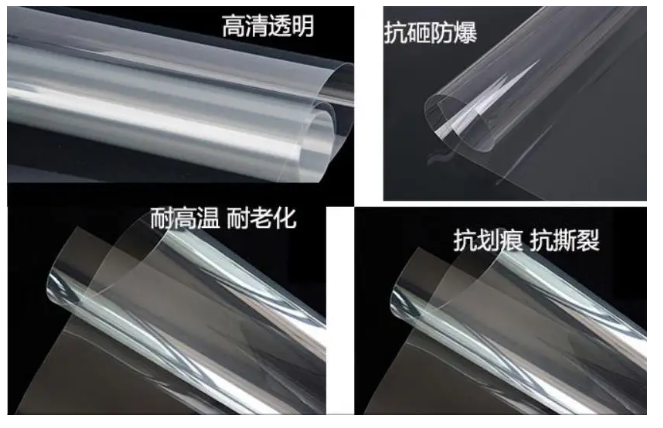

a. Lamination: Lamination mainly includes wet lamination, EVA lamination, pvb lamination, and SGP lamination;


b. Hollow: the common hollow method;


c. Film pasting

6) Surface treatment

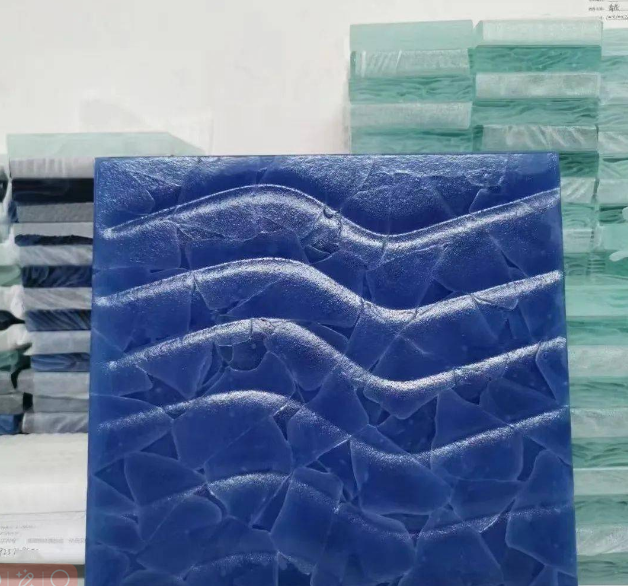

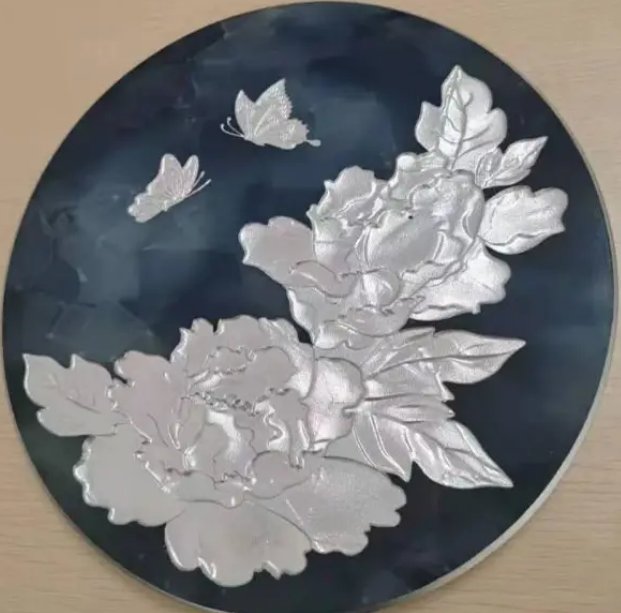

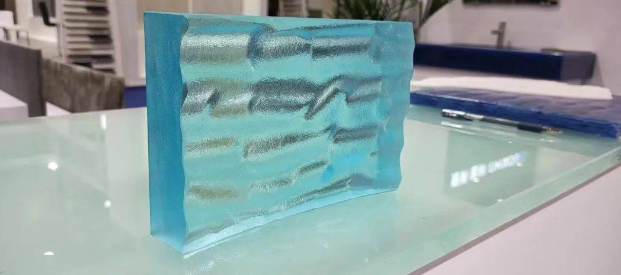

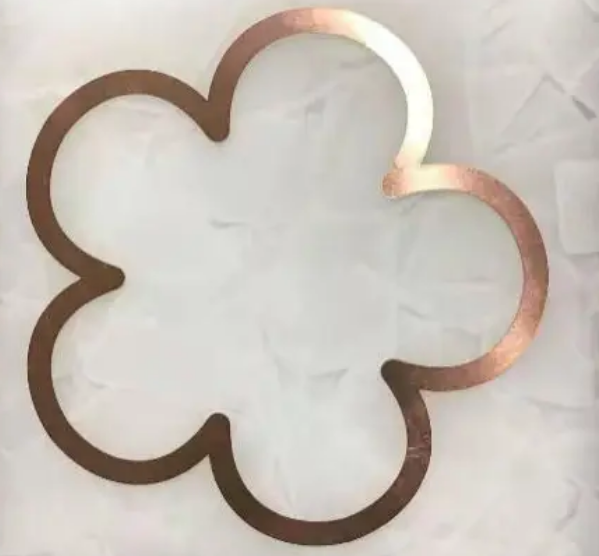

The surface treatment processes of jade glass mainly include carving, inlaying, melting and casting, milling, etc.

雕刻  镶嵌  熔铸  铣槽

      carving                   inlaying                           melting and casting                                milling

13

7) Hot-bending curved plates


▲Hot-bending curved plates


The technical difficulty of hot-bending curved plates mainly lies in the following four points:


a. Arc length, arch height, and dimensional accuracy;

b. Surface changes, deformation of straight lines, and curvature of arc edges;

c. Hot-bending laminated plates, hot-bending hollow plates, and matching difficulties;

d. Calculation of processing fees: hot-bending cost and yield rate.


Summary

Jade glass has the characteristics of high strength and beauty. It can not only be used for decoration, but also can be used in places with stress such as stairs. Do you love this versatile material?
